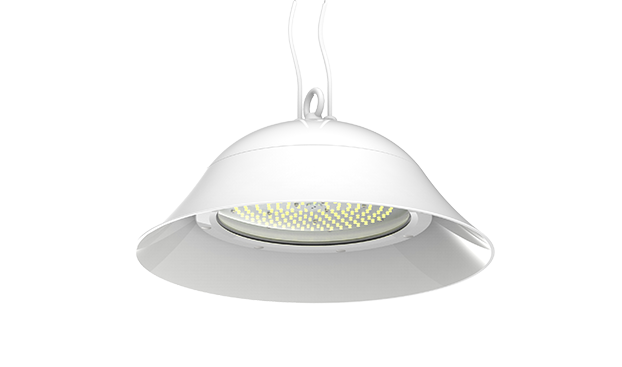

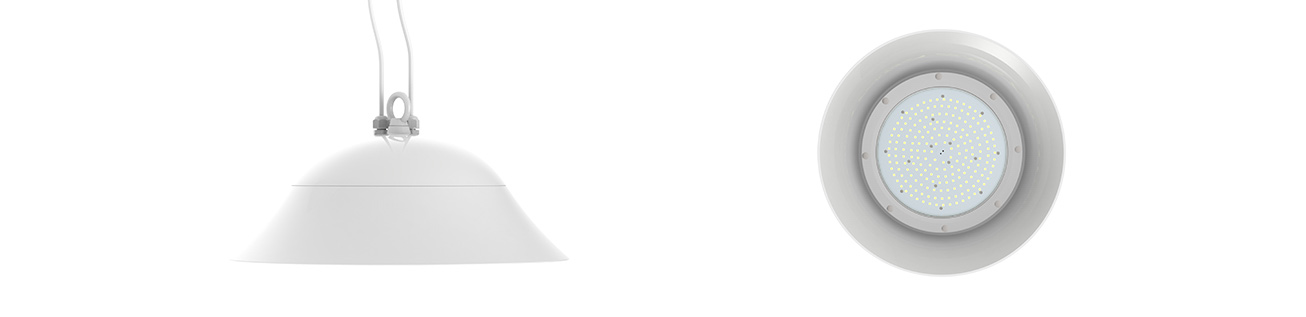

HB05 Food Safe Highbay Series

1. Extremely energy efficient - up to 140lm/w

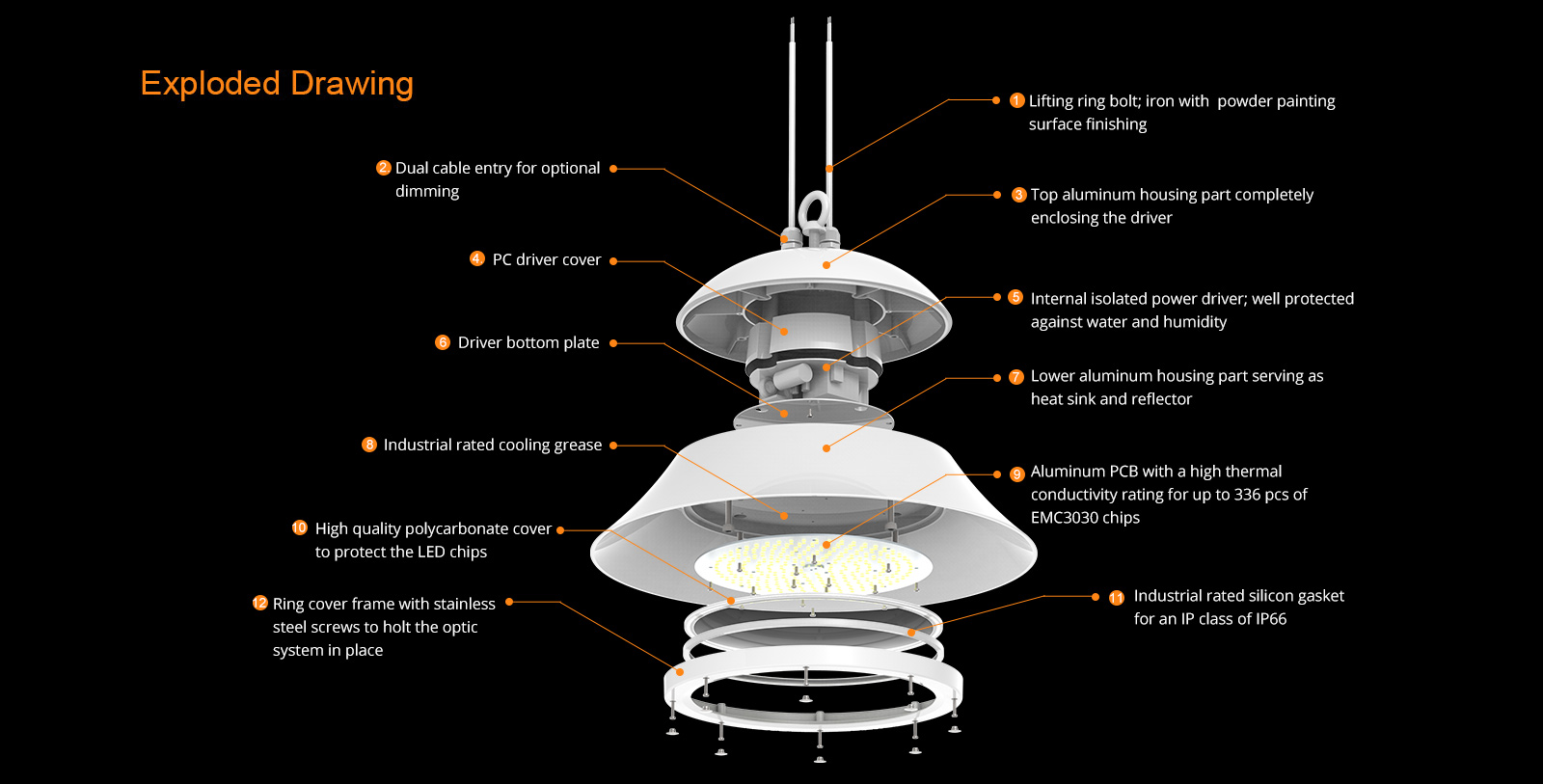

2. High Luminous flux - up to 28.000 lm

3. Unique internal thermal management structure

4. Non-toxic corrosion resistant aluminum exterior

5. Complete smooth surface for easy cleaning

6. IP69K rated for most environmental conditions

7. Suitable for high humidity, wash down capable

8. High quality polycarbonate optics

9. Notably low glare rating

10. No exposed hardware as per FDA regulations

11. Dual cable entry for optional dimming

12. 5 years warranty

INQUIRY NOW

High Bay & Low Bay-HB05 Food Safe Highbay Series

Product Video

The HB05 Food Safe Series pendant LED luminaires are engineered to address the requirements of the food processing industry and comply with FDA guidelines. The corrosion resistant and non-toxic aluminum exterior is completely smooth and easy to clean. Its IP69K ingress protection rating allows for usage in areas with high humidity and makes it wash down capable. The notably high system efficiency of up to 150lm/w will significantly reduce power costs and maximize your rebates for energy companies and government rebate programs. A full range of optional features like dimmable drivers, integrated motion sensors, Zigbee controllers and honeycomb reflectors further enhance the usefulness of this fixture.

Options

-Integrated motion sensor available

-Optional 1-10V dimmable

-Optional honeycomb reflector for glare reduction

-CRI 90 Ra available upon request

-Zigbee is available

Area of application

-Food processing plant

-Flour, Sugar, Starch Processing

-Clean room applications

Certificates

-American market: UL, DLC Premium, cUL

-European market: CE (EMC, LVD, RoHS), TUV, CB, D-Mark

-Australian market: SAA, C-Tick, RCM

-NSF Food Certificate

Specification

Standard lumen (130~140lm/W)
Model	Nominal wattages (W)	Nominal voltage	Rated luminous efficacy (lm/w)	Nominal luminous flux (lumen)	Beam Angle	LED Quantity	CRI
HB05-100W	100W	AC100~277V 50~60Hz	130±10	12880±1000	60°/110°	196 PCS EMC 3030	>80
HB05-150W	150W		130±10	19320±1500		252 PCS EMC 3030
HB05-200W	200W		130±10	25760±2000		336 PCS EMC 3030

Electrical data		Photometrical data
Operating frequency	47-63HZ	Available light colors	warm white;natural white;daylight white
Type of current	AC100-277V	Available color temperatures	3000K;4000K;5000K;6000K
Power factor λ	>0.9	Color rendering index Ra	>80 or >90 optional
Efficiency in %	>90%	Standard deviation of color matching	<5
Start time (0.2s / 0.5s / … )	0.1S	UGR (Unified Glare Rating)	<25 or <23 with Honeycomb Reflector

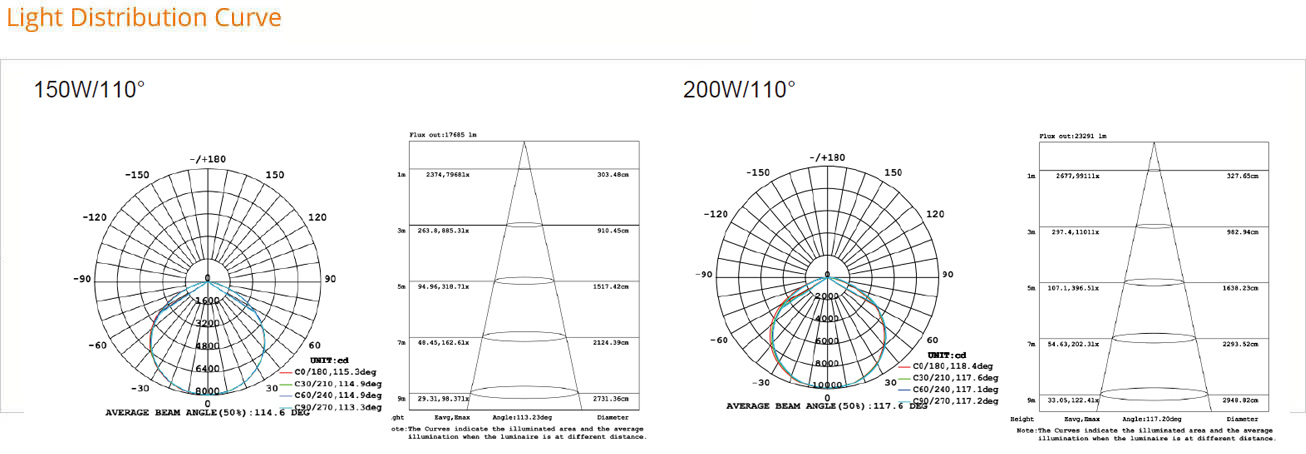

Warm-up time to 60 % (1.5s / 2s / … )	0.5S	Available beam angles	60°/110°

Standards & Certification		Temperatures & operating conditions
Type of protection	IP69K	Heatsink temperature	-20~+60℃
Tested dielectric strength	3.75KVac	Ambient temperature	-30~+50℃
Safety features	Open circuit protection; short circuit protection ; overvoltage protection	Storage temperature	-40~+80℃
Certificates	American market: UL, DLC Premium, cUL European market: CE (EMC, LVD, RoHS), TUV, CB, D-Mark Australian market: SAA, C-Tick, RCM NSF Food Certificate
Energy efficiency class	A+

Lifespan		Features/Capabilities and additional product data
Rated nominal Lifetime	50,000hours	Base/Socket	Directly wired
Switching cycles	100,000 times	Dimmable	1-10V dimmable
Lumen maintenance at e.o.l.	80%
LED Device Lifetime	L80/B10
Warranty	5 years warranty

Packing Information
Model	Dimension	CTN SIZE(CM)	QTY/CTN	Net Weight/pcs(kg)	Gross Weight /CTN(kg)

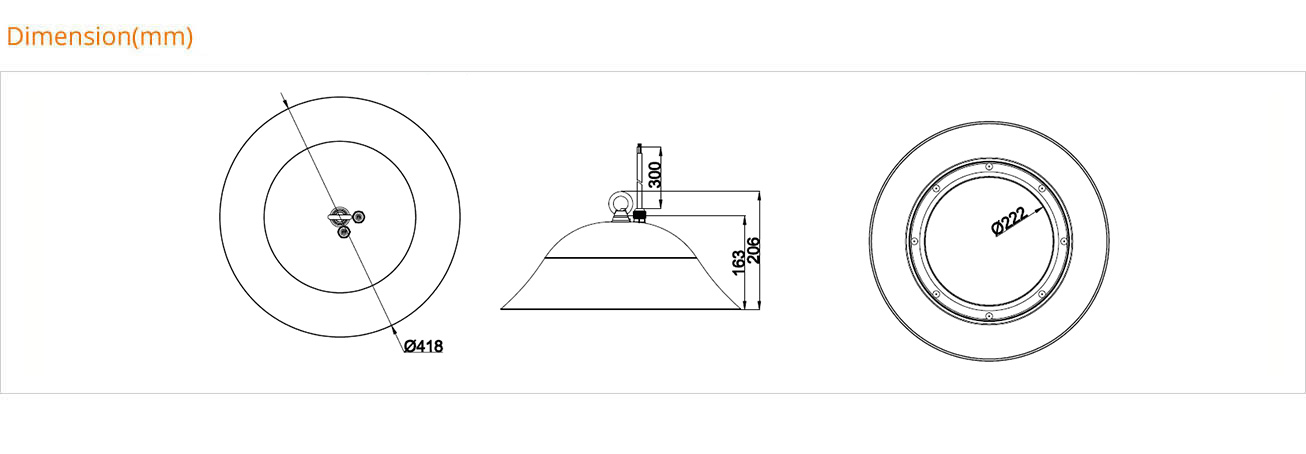

HB05-100W/150W/200W	Φ420*206	494624	1PCS	5.5	7
