Linkable LED Shop light

1. Highly energy efficient - up to 130 lm/w

2. High Luminous flux - up to 7800 lm

3. Single use or continuous-run installation

4. No gaps or seams between the fixtures

5. Quick and easy installation

6. 5 Years warranty

INQUIRY NOW
Linear Fixture-Linkable LED Shop light

Inquiry Now

Submit

Product Video

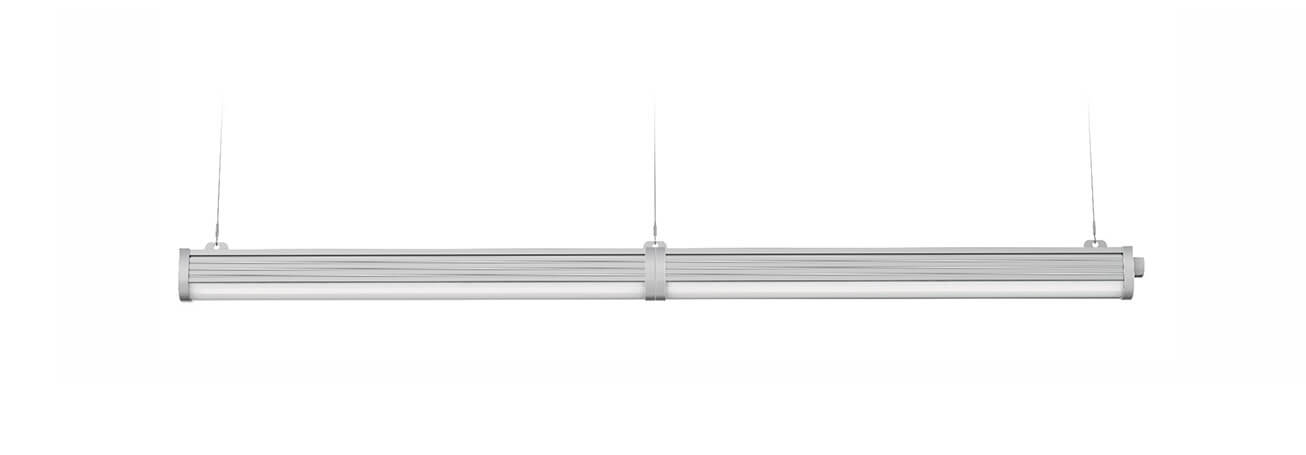

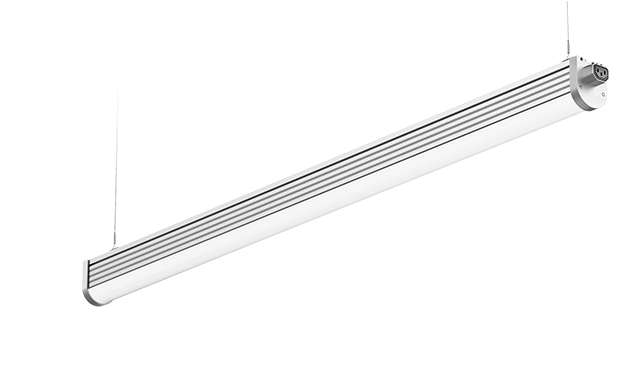

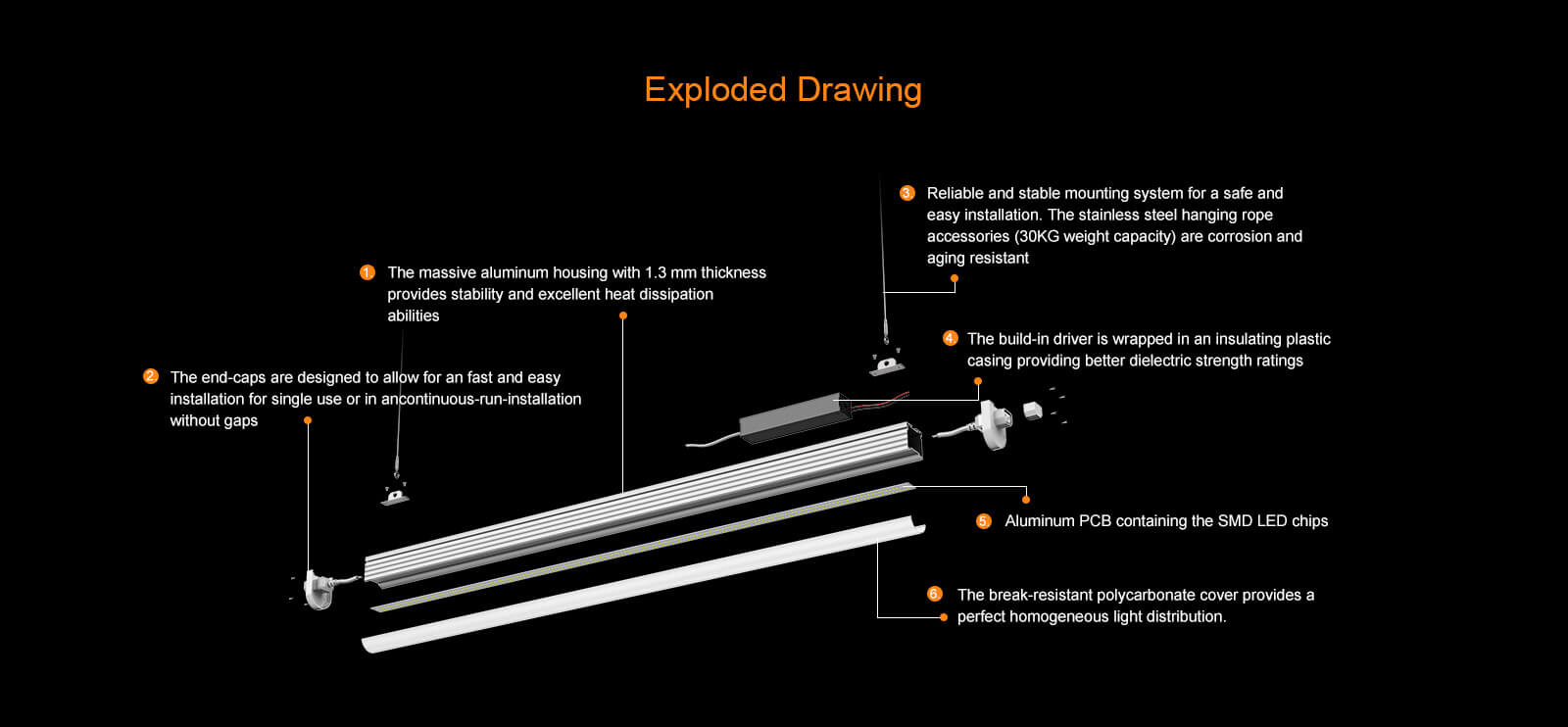

Our T201 Easy-Connect LED linear light is a perfect solution for retail and industrial lower ceiling applications. It was designed to provide a continuous line of light, without gaps or dark spots, throughout halls and supermarkets. Its easy connect system allows for a quick and simple installation and saves significant labor and equipment expenses. Up to 100 feet of fixtures can be connected on one power drop. The Easy-Connect is available with 110lm/w and 130lm/w efficiency delivering up to 7800 lumen. Its massive aluminum housing and high grade components assure a long lifespan and low maintenance.

Options

-Optional Mean well driver available

-CRI 90 Ra available upon request

-Optional emergency power supply

Area of application

-Factories and warehouses

-Supermarkets, shops and exhibitions

-Blu and green end-cap-rings can be provided

-Clear or milky cover available

-Refrigerators & storerooms

-Parking Facilities, corridors and halls

Certificates

-American market: UL, DLC Premium, cUL

-European market: CE (EMC, LVD, RoHS)

-Australian market: SAA, C-Tick, RCM

Linear Fixture-Linkable LED Shop light

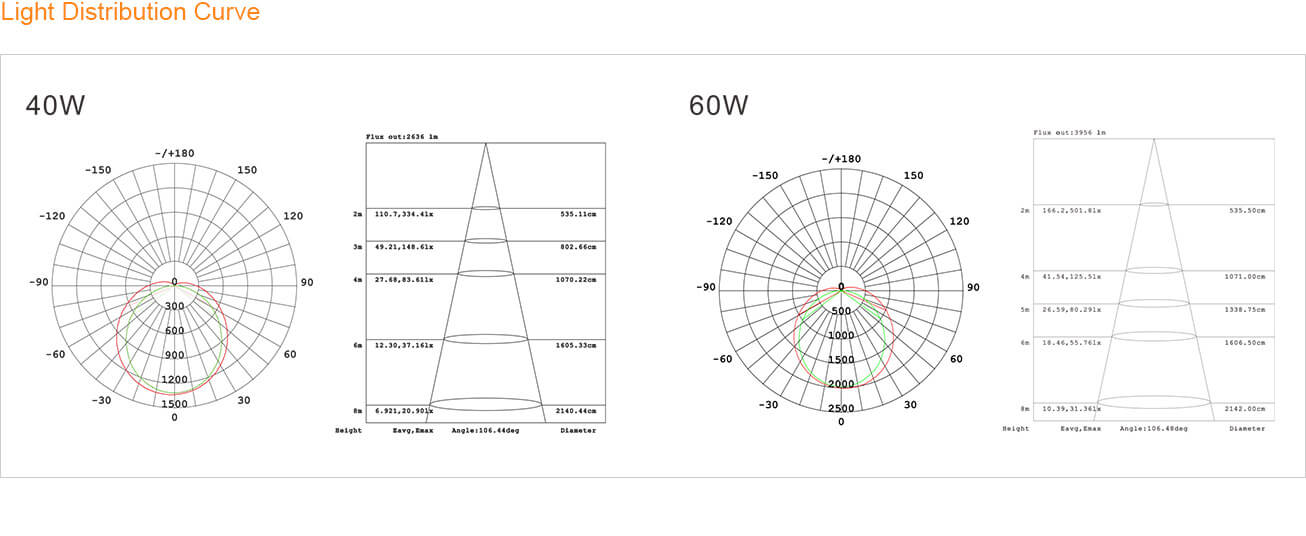

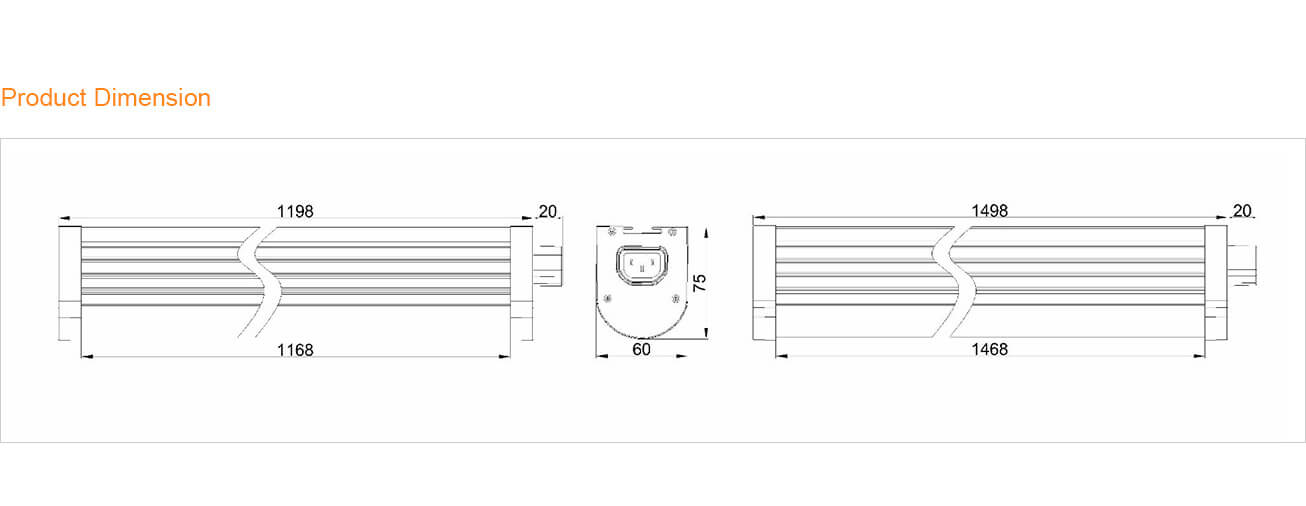

Product Dimension - Easy-connect Suspended Linear Fixture Light Distribution Curve - Easy-connect Suspended Linear Fixture

Specification

Standard lumen (110lm~120lm/W)
Model Nominal wattages (W) Nominal voltage Rated luminous efficacy (lm/w) Nominal luminous flux (lumen) Beam Angle LED Quantity CRI
T201-40W12 40 AC100~277V
50~60Hz
110±5 4400±200 120° 216pcs 0.2W SMD2835  >80Ra
T201-60W12 60 110±5 6600±300 336pcs 0.2W SMD2835
T201-60W15 60 110±5 6600±300 336pcs 0.2W
SMD2835
Lumen Plus (130lm/W)
Model Nominal wattages (W) Nominal voltage Rated luminous efficacy (lm/w) Nominal luminous flux (lumen) Beam Angle LED Quantity CRI
T201-60W12 60 AC100~277V
50~60Hz
130±5 7800±300 120° 336pcs 0.5W
SMD2835
 >80Ra
T201-60W15 60 130±5 7800±300 336pcs 0.5W
SMD2835
Electrical datas Photometrical data
Operating frequency 47-63HZ Available light colors warm white;natural white;daylight white
Type of current AC100-277V Available color temperatures 3000K;4000K;5000K;6000K
Power factor λ >0.9 Color rendering index Ra >80
Efficiency in % >92% Standard deviation of color matching <3
Start time (0.2s / 0.5s / … ) 0.1S UGR (Unified Glare Rating) <25
Warm-up time to 60 %  (1.5s / 2s / … ) 0.5S Available beam angles 120°
Standards & Certification Temperatures & operating conditions
Type of protection IP54 Heatsink temperature -20~+69℃
Tested dielectric strength 3.75KVac Ambient temperature -40~+50℃
Safety features Open circuit protection;
 short circuit protection ;
overvoltage protection
Storage temperature -40~+80℃
Certificates American market: UL, DLC Premium, cUL
European market: CE,(EMC,LVD,RoHS)
Australian market: SAA, CTick,RCM

Energy efficiency class A++
Lifespan Features/Capabilities and additional product data
Rated nominal Lifetime 50,000hours Base/Socket Directly wired
Switching cycles 100,000 times Dimmable /
Lumen maintenance at e.o.l. 80%
Product Weight & Package Information
Model Dimension CTN SIZE(CM) QTY/CTN Net Weight/pcs(g) Gross Weight /CTN(kg)
T201-40W12 40 135*28*17 6PCS 2.2 20
T201-60W12 60 135*28*17 6PCS 2.2 20
T201-60W15 60 165*28*17 6PCS 3 24

Specification -Linkable LED Shop light
