LED Flood Light

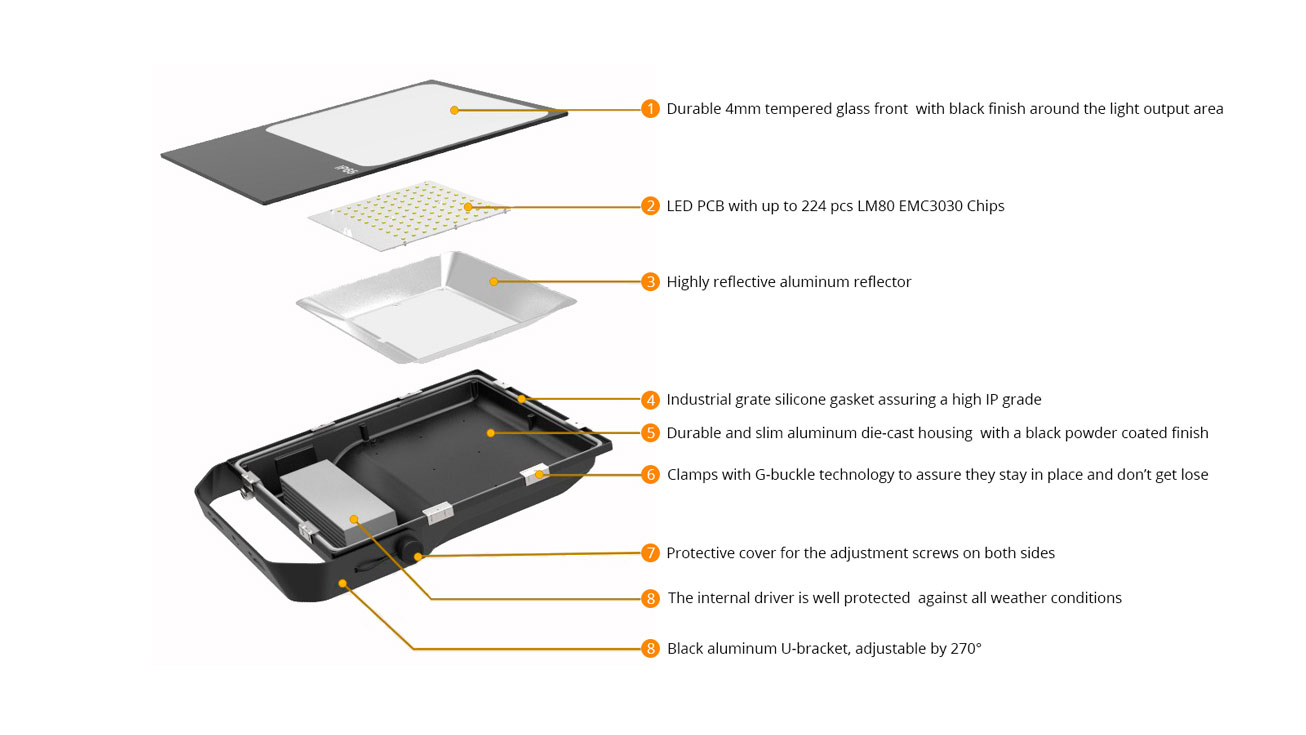

1.Wind resistant design with durable aluminum die-cast housing

2.Completely sealed, dust and water proof

3.Industrial great silicone ring beneath the glass front

4.Durable tempered glass front - 4mm thickness

5.Highly reflective aluminum reflector

6.Ultra slim design - only 60mm deep

7.Innovative G-buckle clamp technology

8.Protective cover for adjustment screws

9.Easily adjustable 270° angle

10.Quick to install and easy to use, secure and reliable

11.No UV or RF interference, No mercury or lead

12.5 Years warranty

INQUIRY NOW
Outdoor Lighting-LED Flood Light

Inquiry Now

Submit

Product Video

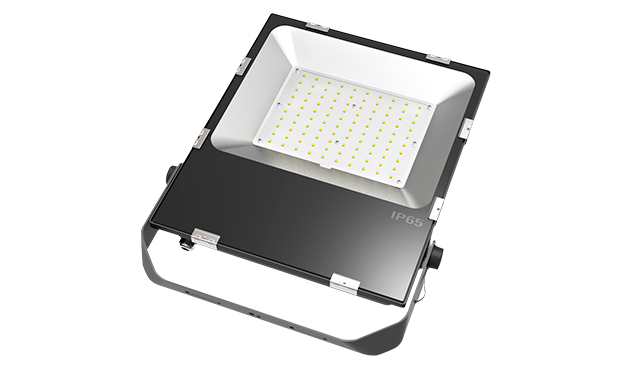

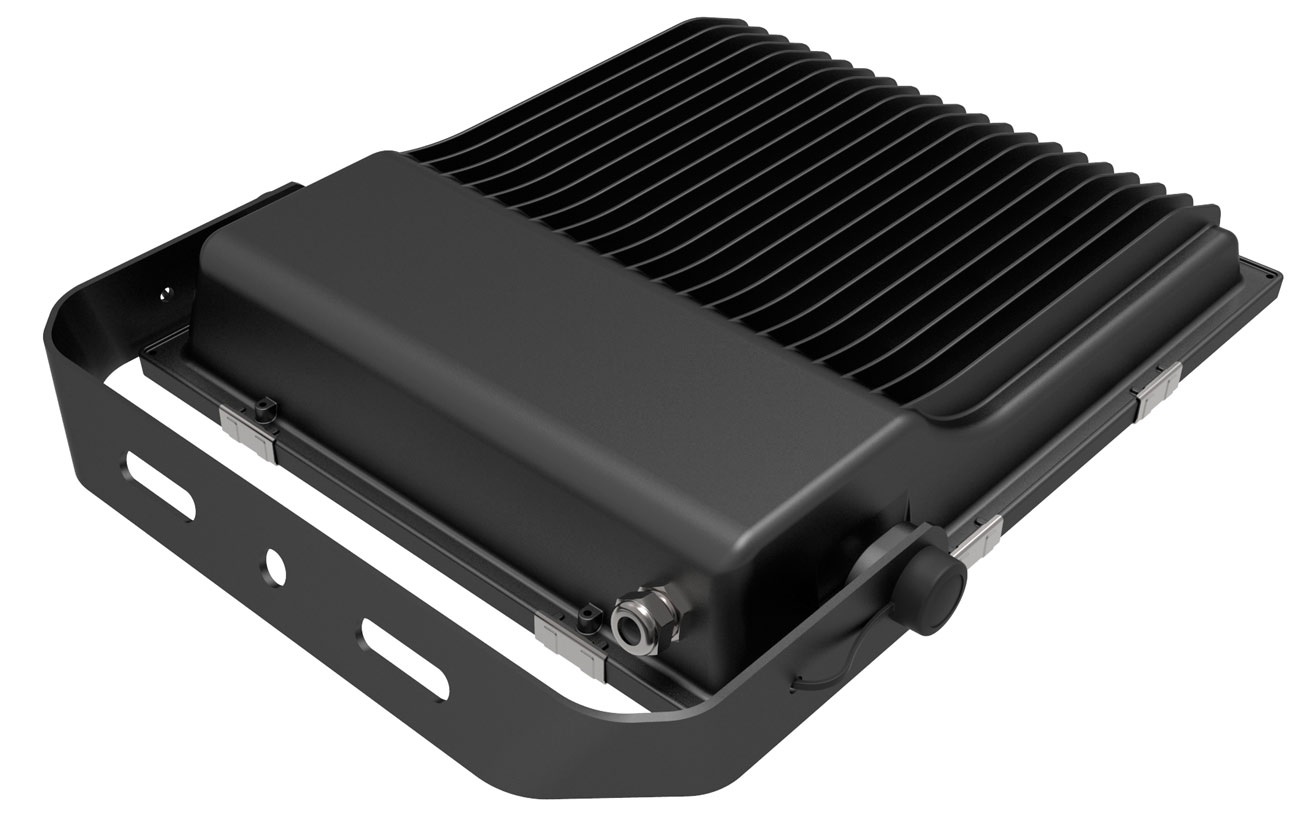

These LED Flood lights are designed for industrial and commercial applications like loading bays, billboard illumination, or Barns and riding halls. Ranging from 30W to 200W these lights are the ideal choice for most outdoor projects. The durable powder coated aluminum die-cast housing provides very good heat dissipation and assures a long lifespan. The black aluminum U-bracket is 270° adjustable and fixed with stainless steel screws with protective cover. The tempered glass front is 4mm thick with a high transparency rate and black finish around the light output area. The internal driver is well protected against all weather conditions and can be easily accessed for maintenance purposes.

Options

- Photocell sensor

- CRI 80 Ra available upon request

- Optional Mean well driver available

Area of application

- Parking lots & freight yards

- Billboard illumination

- Ports and airports

- Agriculture, Barns and riding halls

Certificates

-European market:  CE、RoHS


Outdoor Lighting-LED Flood Light

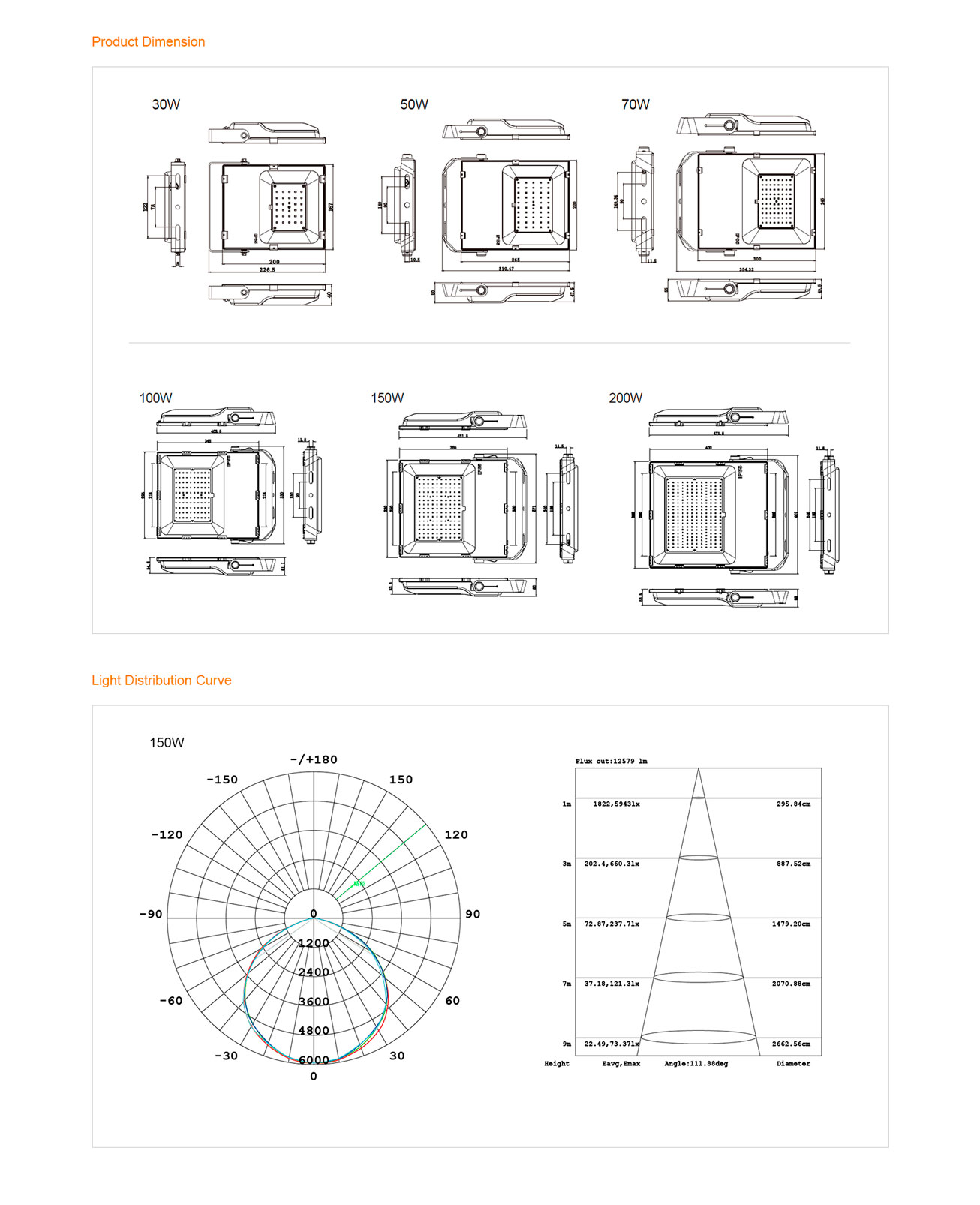

Product Dimension - LED Flood Light

Specification

Standard lumen (115lm~125lm/W)
Model Nominal wattages (W) Nominal voltage Rated luminous efficacy (lm/w) Nominal luminous flux (lumen) Beam Angle LED Quantity CRI
FG-30W 30W AC100~277V
50~60Hz
120±5 3600±150 120° 35PCS
1W 3030
>70Ra
FG-50W 50W 120±5 6000±250 56PCS
1W 3030
FG-70W 70W 120±5 8400±350 77PCS
1W 3030
FG-100W 100W 120±5 12000±500 112PCS
1W 3030
FG-150W 150W 120±5 18000±750 168PCS
1W 3030
FG-200W 200W 120±5 24000±1000 224PCS
1W 3030
Electrical data Photometrical data
Operating frequency 47-63HZ Available light colors warm white;natural white;daylight white
Type of current AC100-277V Available color temperatures 3000K;4000K;5000K;6000K
Power factor λ >0.9 Color rendering index Ra >70
Efficiency in % >90% Standard deviation of color matching <5
Start time (0.2s / 0.5s / … ) 0.1S UGR (Unified Glare Rating) <23
Warm-up time to 60 % (1.5s / 2s / … ) 0.5S Available beam angles 120°
Standards Certification Temperatures operating conditions
Type of protection IP65 Operating temp 20~+60℃
Tested dielectric strength 3.75KVac Ambient temperature -30~+45℃
Safety features Open circuit protection;
short circuit protection ;
overvoltage protection
Storage temperature -40~+80℃
Certificates CE ROHS
Energy efficiency class A+
Lifespan Features/Capabilities and additional product data
Rated nominal Lifetime 50.000 hours Base/Socket Directly wired
Switching cycles 100,000 times Dimmable
Lumen maintenance at e.o.l. 70%
Packing Information
Model Dimension CTN SIZE(CM) QTY/CTN Net Weight/pcs(kg) Gross Weight /CTN(kg)
FG-30W 200*167*40MM 53.5*40.5*26 20PCS 1.3 27
FG-50W 265*220*48MM 53*36.5*25.5 8PCS 2.4 20.5
FG-70W 300*245*50MM 43.5*34*13 1PCS 3.5 4.8
FG-100W 345*295*60MM 43.5*34*13 1PCS 4.8 6.2
FG-150W 365*330*60MM 51*43*13.5 1PCS 5.5 7
FG-200W 400*360*60MM 55.5*46*13.5 1PCS 6.5 8.5

Specification -LED Flood Light
