E-Cloud Non-corrosive/Vapor Tight Fixture

1. Highly energy efficient - up to 130 lm/w

2. IP67 and IK10 for indoor and outdoor use under all conditions

3. Single installation or use as continuous line

4. Quick and easy installation

5. D-Mark tested for the use in paper production, wood processing etc

6. 5 Years warranty

INQUIRY NOW

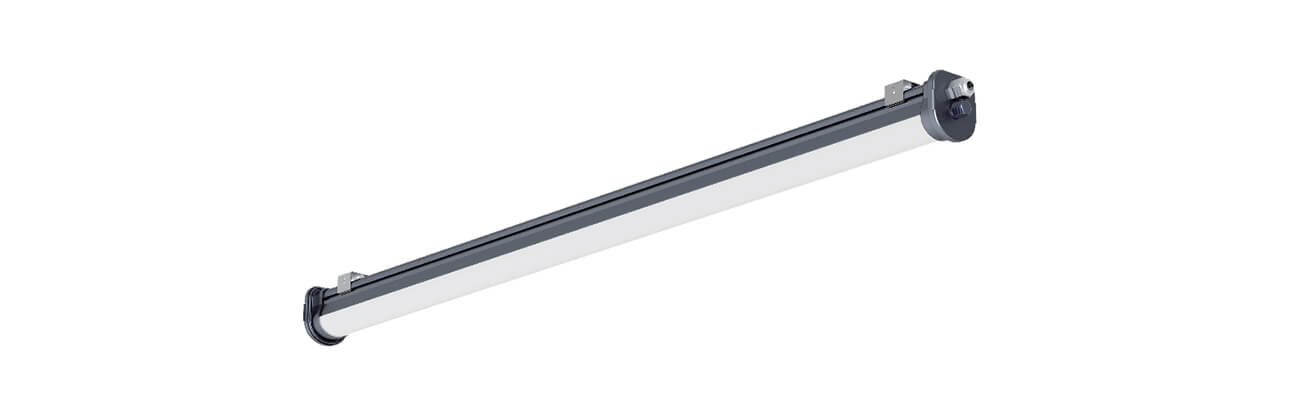

Linear Fixture-E-Cloud Non-corrosive/Vapor Tight Fixture

Inquiry Now

Submit

Product Video

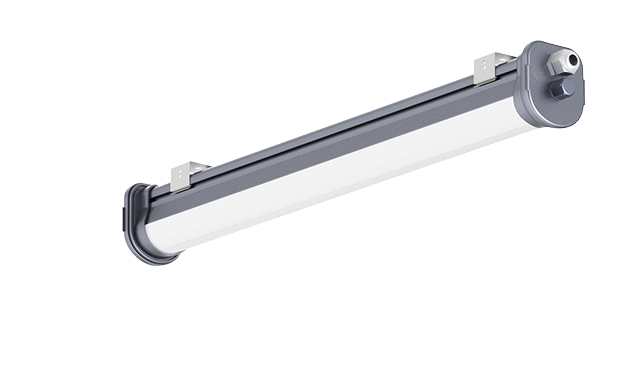

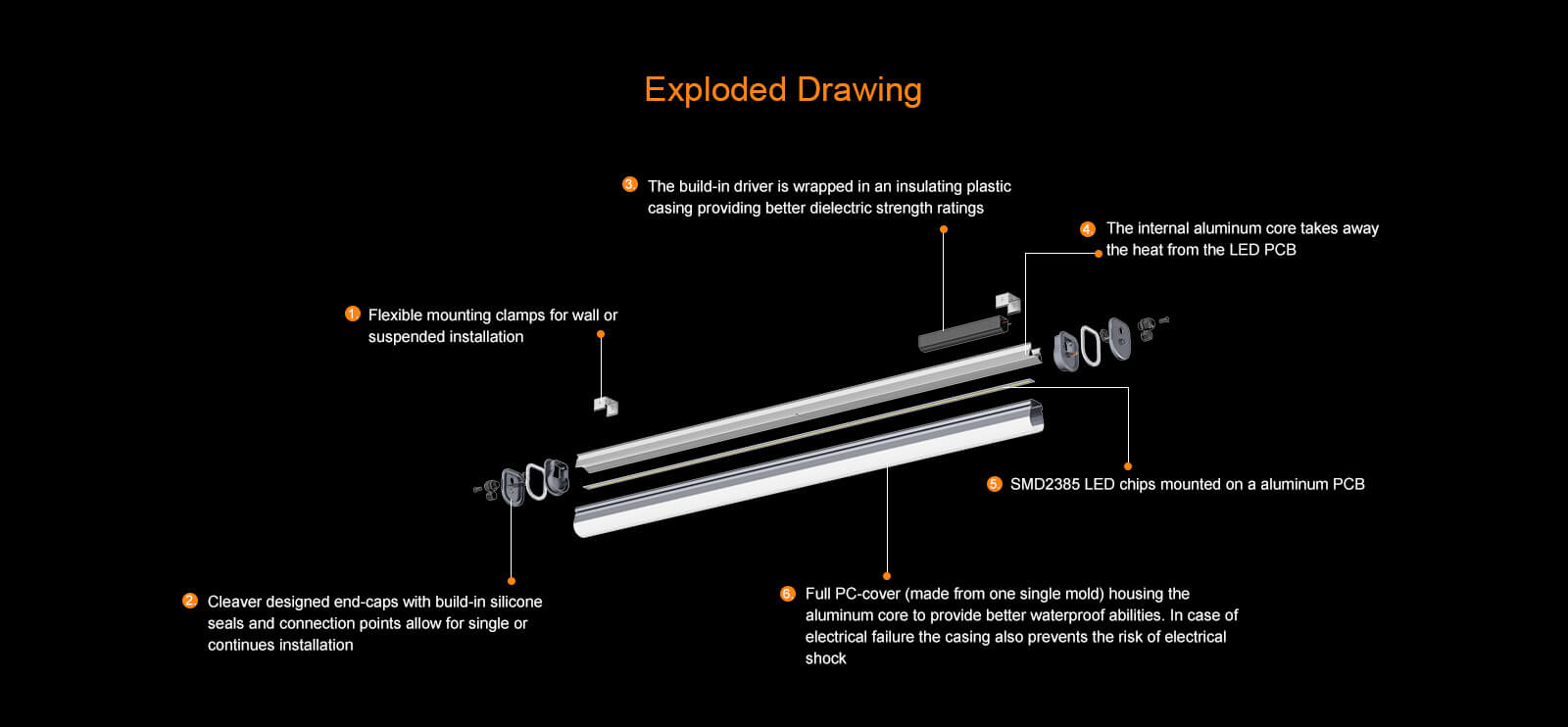

The E-Cloud T53 is a modern and clever designed LED Tri-proof light for industrial areas. Its polycarbonate housing is cast from a single mold and absolutely dust and waterproof. The end caps on both sides can be opened without tools and they include a durable silicon seal which makes this product truly suitable for indoor and outdoor use even under harsh conditions. Its wide beam angel of 130° and the high grade Refond SMD2835 LED chips assure a perfectly homogeneous lighting distribution. A suitably large aluminum core allows for good cooling and a long lifespan. It can be installed as a single light solution as well as in a continuous line throughout a hall.

Options

-CRI 90 Ra available upon request

Area of application

-Production areas with harsh conditions

-Parking Facilities, corridors and halls

-Storage rooms and warehouses

Certificates

-European market: CE (EMC, LVD, RoHS), D-Mark

Linear Fixture-E-Cloud Non-corrosive/Vapor Tight Fixture

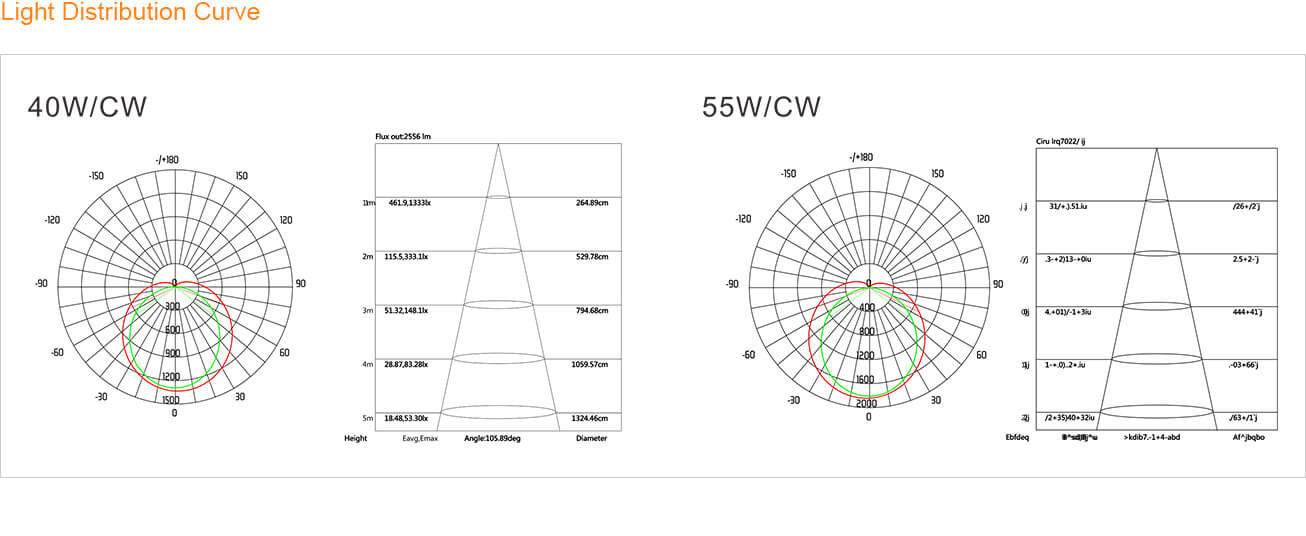

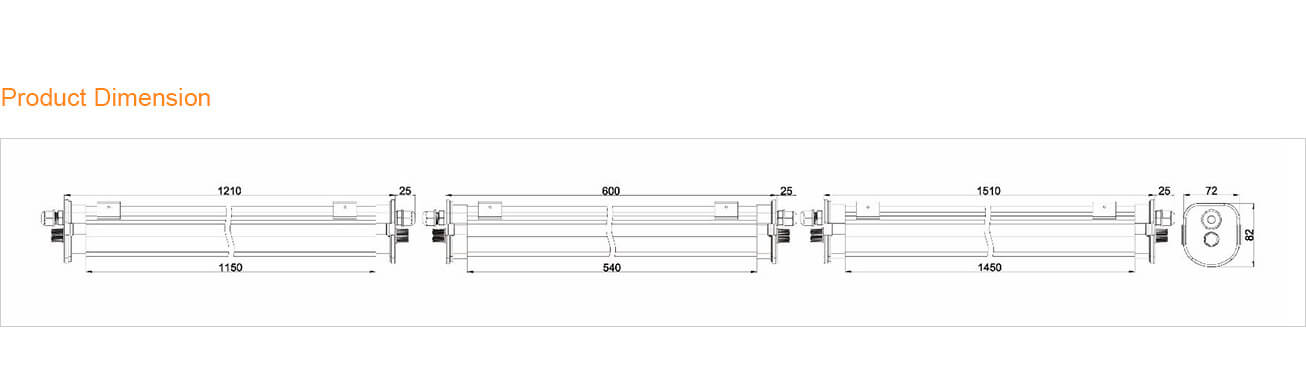

Product Dimension - E-Cloud Non-corrosive/Vapor Tight Fixture Light Distribution Curve - E-Cloud Non-corrosive/Vapor Tight Fixture

Specification

Standard lumen (lm) (130lm/W)
Model Nominal wattages (W) Nominal voltage Rated luminous efficacy (lm/w) Nominal luminous flux (lumen) Beam Angle LED Quantity CRI
T53-20W06 20 AC100~277V
50~60Hz
125±5 2500±100 120° 72pcs 0.5W SMD2835  >80Ra
T53-40W12 40 125±5 5000±200 144pcs 0.5W SMD2835
T53-55W15 55 125±5 6800±275 192pcs 0.5W SMD2835
Electrical data Photometrical data
Operating frequency 47-63HZ Available light colors warm white;natural white;daylight white
Type of current AC100-277V Available color temperatures 3000K;4000K;5000K;6000K
Power factor λ >0.9 Color rendering index Ra >80
Efficiency in % >92% Standard deviation of color matching <3
Start time (0.2s / 0.5s / … ) 0.1S UGR (Unified Glare Rating) <25
Warm-up time to 60 %  (1.5s / 2s / … ) 0.5S Available beam angles 120°
Standards & Certification Temperatures & operating conditions
Type of protection IP67 Heatsink temperature -20~+69℃
Tested dielectric strength 3.75KVac Ambient temperature -40~+50℃
Safety features Open circuit protection;
 short circuit protection ;
overvoltage protection
Storage temperature -40~+80℃
Certificates European market: CE, D-Mark
Energy efficiency class A+
Lifespan Features/Capabilities and additional product data
Rated nominal Lifetime 50,000hours Base/Socket Directly wired
Switching cycles 100,000 times Dimmable /
Lumen maintenance at e.o.l. 80%
Product Weight & Package Information
Model Dimension CTN SIZE(CM) QTY/CTN Net Weight/pcs(g) Gross Weight /CTN(kg)
T53-20W06 600*82*72 71*35*23 6PCS 1 8.8
T53-40W12 1210*82*72 132*35*23 6PCS 1.8 14.5
T53-55W15 1510*82*72 162*35*23 6PCS 2.3 18.8

Specification -E-Cloud Non-corrosive/Vapor Tight Fixture
