1. Highly energy efficient - up to 130 lm/w
2. High Luminous flux - up to 7800 lm
3. IP54 for indoor usage
4. Very low glare rating - UGR<19
5. Internal isolated power driver
6. Strong and durable aluminum housing
7. Suspended or surface mounted installation
8. No UV or IR and completely mercury free
9. 5 Years warranty

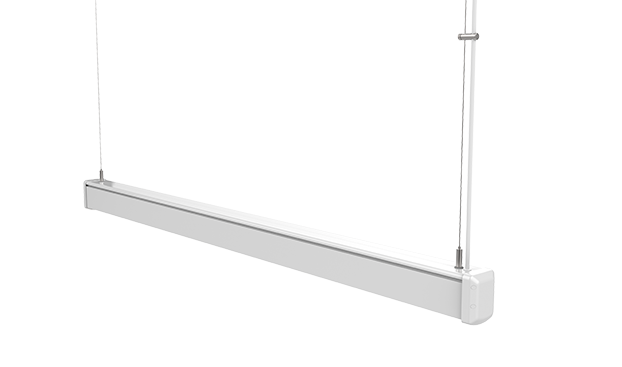

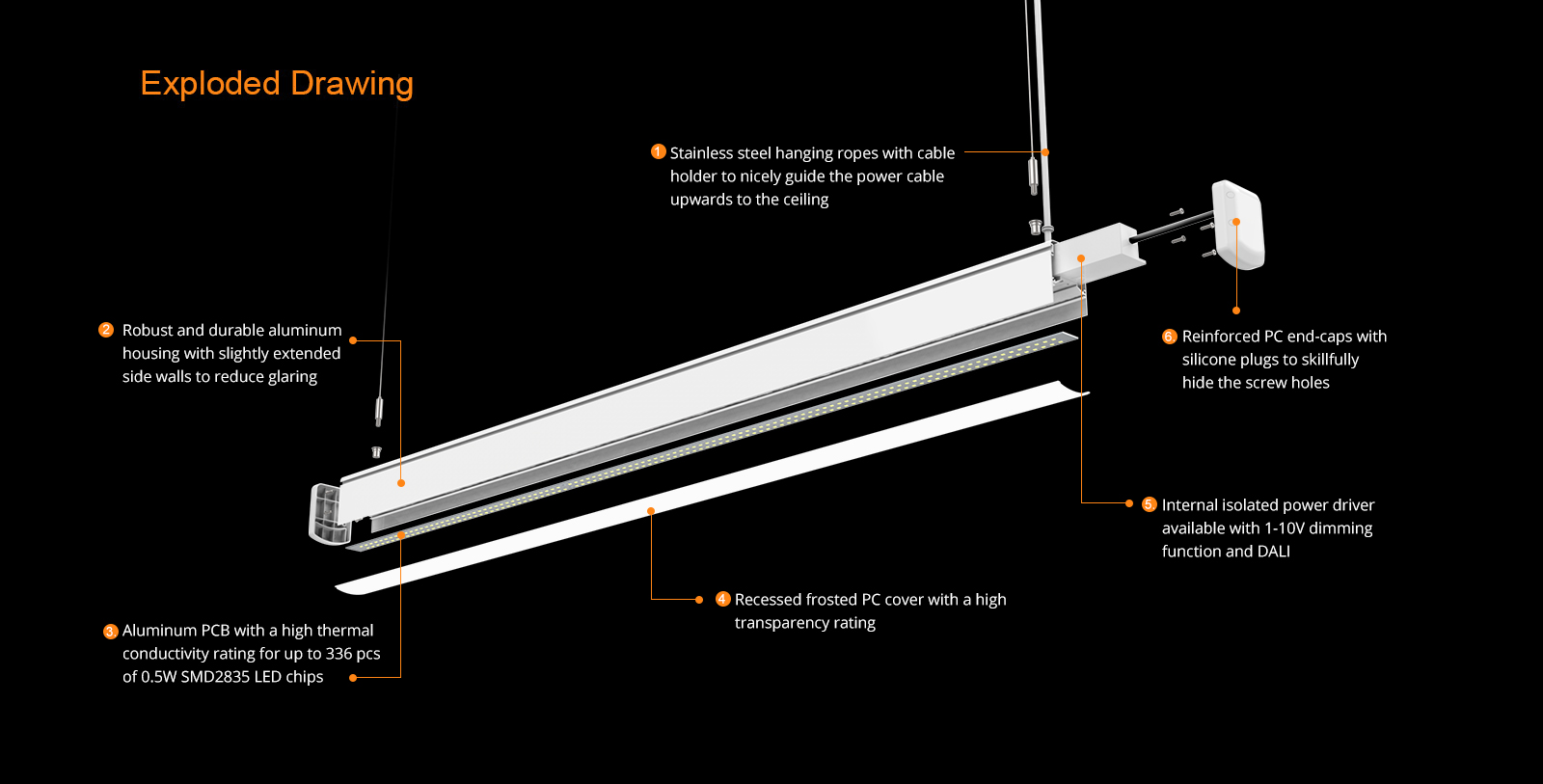

The T23 EVOline Linear Pendant Light is a highly efficient and very durable Multi-Purpose-Room fixture developed for entrance and reception areas. Its low glare design makes it also very suitable for office and workspace environments as well as any other area where a low UGR rating is required. The isolated internal power driver drives up to 336 pcs of 0.5W SMD2835 LED chips with a maximum system power of up to 60W. The pre-installed 1m power cable comes out on top and can be guided with a cable holder upwards along the hanging rope to the ceiling. Upon request an internal motion and /or daylight sensors can be provided as well as 1-10V dimmable and DALI dimmable.
- Entrance and reception areas
- Hallways & Storage rooms
- Office environments
- European market: CE (EMC, LVD, RoHS)
| Basic Specifications | |||||||
|---|---|---|---|---|---|---|---|
| Model | Nominal wattages (W) | Nominal voltage | Rated luminous efficacy (lm/w) | Nominal luminous flux (lumen) | Beam Angle | LED Quantity | CRI |
| T23-40W12 | 40W |
AC100~277V
50~60Hz
|
125±5 | 5000±200 | 100° |
240 PCS
0.5W 2835
|
>80Ra |
| T23-60W12 | 60W | 120±5 | 7200±300 |
240 PCS
0.5W 2835
|
|||
| T23-60W15 | 60W | 125±5 | 7500±300 |
336 PCS
0.5W 2835
|
|||
| Electrical data | Photometrical data | ||||
|---|---|---|---|---|---|
| Operating frequency | 47-63HZ | Available light colors | warm white;natural white;daylight white | ||
| Type of current | AC100-277V | Available color temperatures | 3000K;4000K;5000K;6000K | ||
| Power factor λ | >0.9 | Color rendering index Ra | >80 | ||
| Efficiency in % | >88% | Standard deviation of color matching | <5 | ||
| Start time (0.2s / 0.5s / … ) | 0.1S | UGR (Unified Glare Rating) | <19 | ||
| Warm-up time to 60 % (1.5s / 2s / … ) | 0.5S | Available beam angles | 100° | ||
| Standards & Certification | Temperatures & operating conditions | ||
|---|---|---|---|
| Type of protection | IP54 | Heatsink temperature | -20~+60℃ |
| Tested dielectric strength | 3.75KVac | Ambient temperature | -30~+50℃ |
| Safety features |
Open circuit protection; short circuit protection ; overvoltage protection |
Storage temperature | -40~+80℃ |
| Certificates | CE | ||
| Energy efficiency class | A+ | ||
| Lifespan | Features/Capabilities and additional product data | ||
|---|---|---|---|
| Rated nominal Lifetime | 50.000 hours | Base/Socket | Directly wired |
| Switching cycles | 100.000 times | Dimmable | 1-10V dimmable，DALI dimmable |
| Lumen maintenance at e.o.l. | 80% | ||
| Product Weight & Package Information | |||||
|---|---|---|---|---|---|
| Model | Dimension（MM) | CTN SIZE(CM) | QTY/CTN | Net Weight/pcs(kg) | Gross Weight /CTN(kg) |
| T56-40W12/T56-60W12 | 1198*60*78 | 125*30*18 | 6PCS | 2 | 15 |
| T56-60W15 | 1498*60*78 | 155*30*18 | 6PCS | 2.4 | 17.5 |
