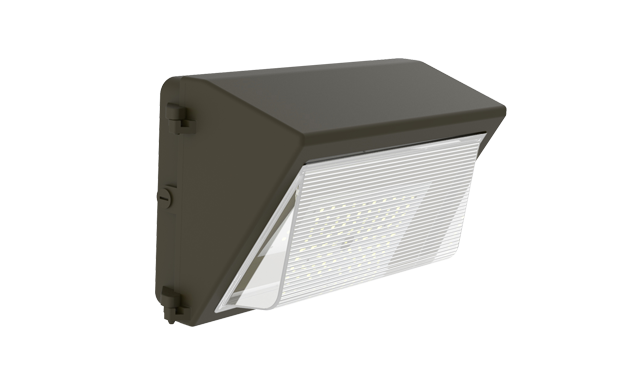

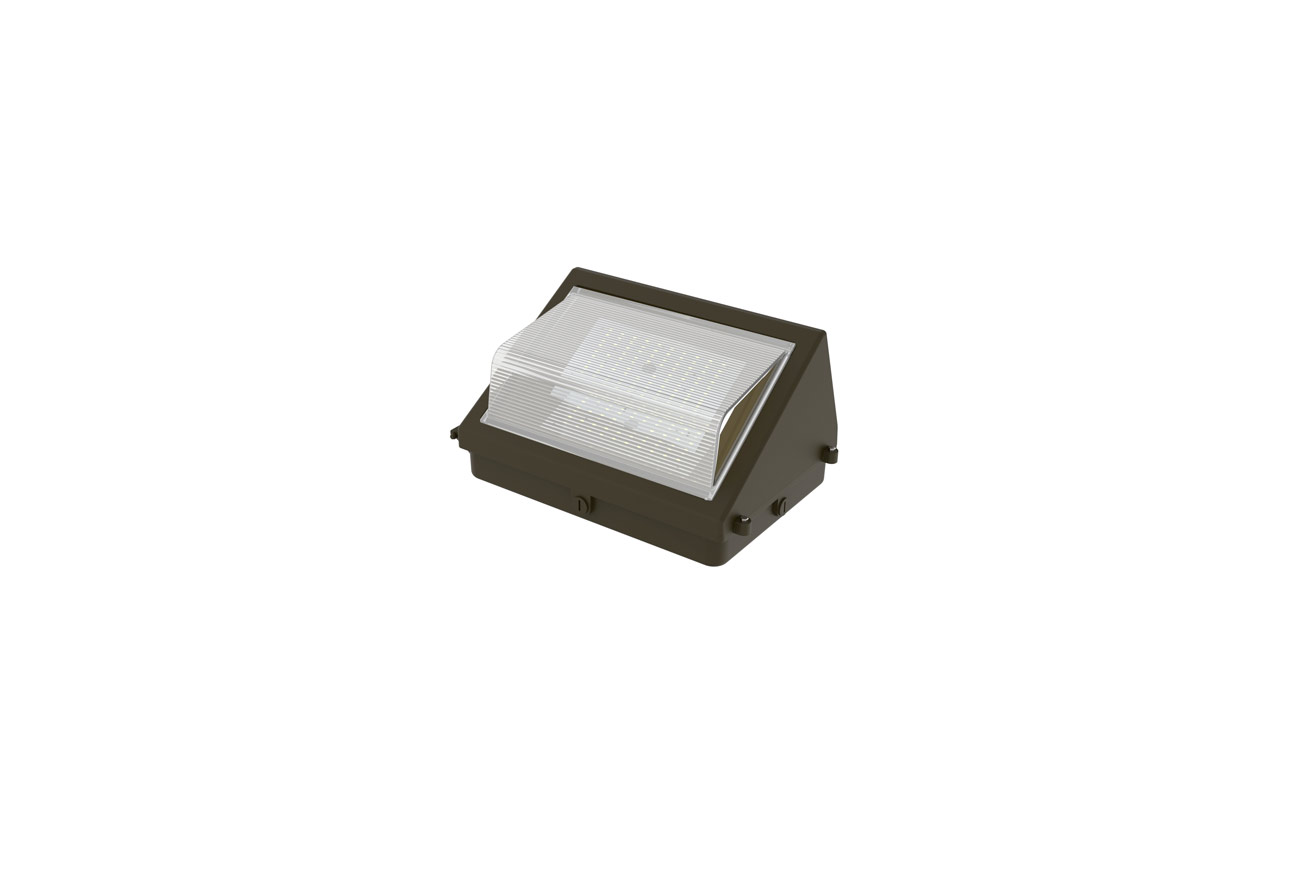

LED Wall Pack Light
1.Light efficiency up to 125lm/wn
2.Heavy-duty cast aluminum housing
3.IP65 for indoor and outdoor use
4.Easy wall mounting
5.5 Years warranty
1.Light efficiency up to 125lm/wn
2.Heavy-duty cast aluminum housing
3.IP65 for indoor and outdoor use
4.Easy wall mounting
5.5 Years warranty

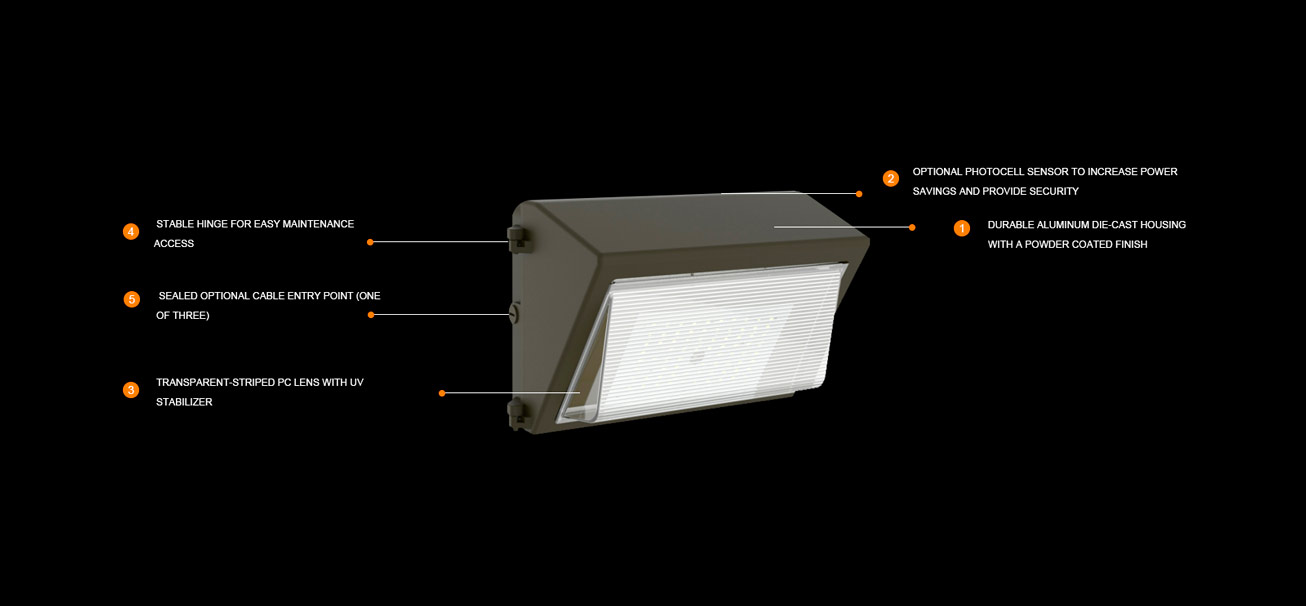

This traditional FYTLED Wall Pack Light is built for industrial and commercial use. Thanks to several optional cable entries it is easy to install and wire. The internal driver is well protected against all weather conditions and can be easily accessed for maintenance purposes. The housing is sealed with an industrial great silicon seal to assure a dust and water proof IP65 rating. To increase the power savings an optional photocell sensor can be provided.
- Entrance areas and country yards
- Garden & landscape lighting
- Walkways & parking lots
- Factories and warehouses
-American market: UL/cUL
| Standard lumen (120lm~130lm/W) | |||||||
|---|---|---|---|---|---|---|---|
| Model | Nominal wattages (W) | Nominal voltage | Rated luminous efficacy (lm/w) | Nominal luminous flux (lumen) | Beam Angle | LED Quantity | CRI |
| WP-45W | 45W |
AC100~277V 50~60Hz |
120±5 | 5400±200 | 100° |
56PCS 1W 3030 |
>70Ra |
| WP-70W | 70W | 120±5 | 8400±350 |
84PCS 1W 3030 |
|||
| WP-90W | 90W | 120±5 | 10800±450 |
112PCS 1W 3030 |
|||
| WP-120W | 120W | 120±5 | 14400±600 |
154PCS 1W 3030 |
|||
| WP-150W | 150W | 120±5 | 18000±750 |
189PCS 1W 3030 |
|||
| Electrical data | Photometrical data | ||
|---|---|---|---|
| Operating frequency | 47-63HZ | Available light colors | warm white;natural white;daylight white |
| Type of current | AC100-277V | Available color temperatures | 3000K;4000K;5000K;6000K |
| Power factor λ | >0.9 | Color rendering index Ra | >70 |
| Efficiency in % | >90% | Standard deviation of color matching | <5 |
| Start time (0.2s / 0.5s / … ) | 0.1S | UGR (Unified Glare Rating) | <21 |
| Warm-up time to 60 % (1.5s / 2s / … ) | 0.5S | Available beam angles | 100° |
| Standards Certification | Temperatures operating conditions | ||
|---|---|---|---|
| Type of protection | IP65 | Heatsink temperature | -20~+60℃ |
| Tested dielectric strength | 3.75KVac | Ambient temperature | -30~+45℃ |
| Safety features |
Open circuit protection; short circuit protection ; overvoltage protection |
Storage temperature | -40~+80℃ |
| Certificates | UL,cUL | ||
| Energy efficiency class | A+ | ||
| Lifespan | Features/Capabilities and additional product data | ||
|---|---|---|---|
| Rated nominal Lifetime | 50.000 hours | Base/Socket | Directly wired |
| Switching cycles | 100,000 times | Dimmable | 1-10V dimmable, DALI |
| Lumen maintenance at e.o.l. | 80% | ||
| Packing Information | |||||
|---|---|---|---|---|---|
| Model | Dimension | CTN SIZE(CM) | QTY/CTN | Net Weight/pcs(kg) | Gross Weight /CTN(kg) |
| WP-45W | 361*235*188MM | 39*27*24.5 | 1PCS | 3.2 | 3.7 |
| WP-70W | 361*235*188MM | 39*27*24.5 | 1PCS | 3.7 | 4.3 |
| WP-90W | 361*235*188MM | 39*27*24.5 | 1PCS | 3.7 | 4.3 |
| WP-120W | 458*248*222MM | 48*28*23.5 | 1PCS | 5.1 | 5.8 |
| WP-150W | 458*248*222MM | 48*28*23.5 | 1PCS | 5.1 | 5.8 |
