Shine a Light in Every Corner!
Shine a Light in Every Corner!
1. Sleek and slim design to save shipping costs.
2. Easy installation and best replacement for traditional fluorescent fixtures.
3. Ambient temperature resistant from -40~+40℃, suitable for multiple applications.
4. Flicker-free driver makes soft light and reduces eye fatigue.
5. IP65
Inquire Now
| Model No. | T502-20W06 | T502-35W12 | T502-45W15 | |
|---|---|---|---|---|
| Power | 20W | 35W | 45W | |

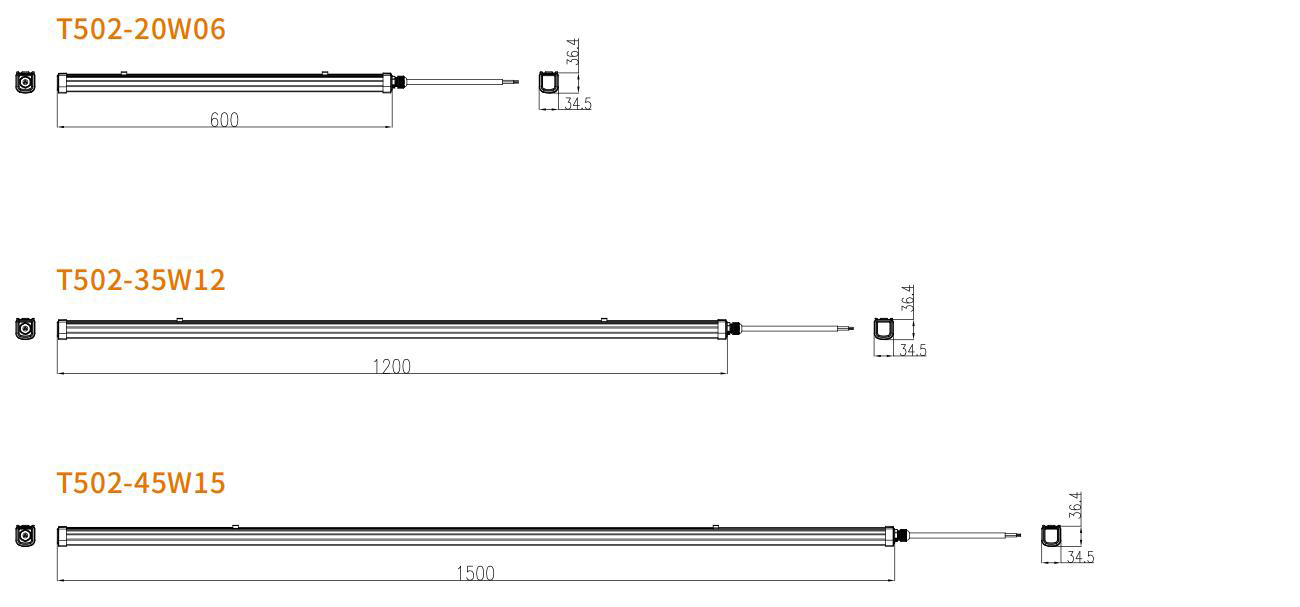

| Product Dimension | 600*34.5*36.5(mm) | 1200*34.5*36.5(mm) | 1500*34.5*36.5(mm) | |
| Efficiency Plus | 140±10lm/W | |||
| Luminous Flux (±10%) | 2800±200lm | 4900±350lm | 6300±450lm | |
| CCT | 3000K;4000K;5000K;6500K | |||
| Ingress Protection | IP65 | |||
| Color Rendering Index | Ra>80 | |||

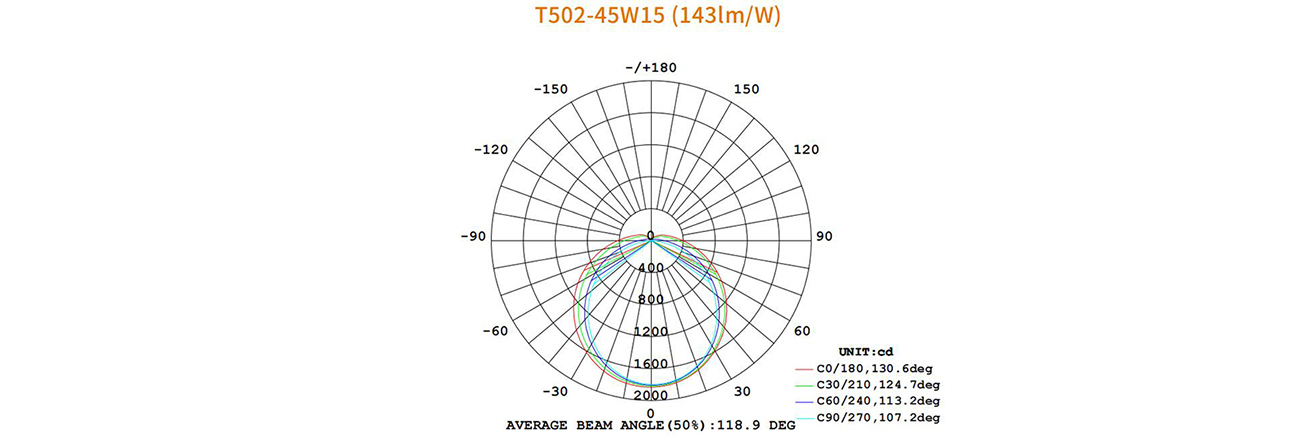

| Beam Angle | 120° | |||
| Driver Brand | TOMCARLINE | |||
| Input Voltage | AC200-240V | |||
| Power Factor | >0.9 | |||
| Frequency | 47-63HZ | |||
| Driver Type | Constant Current (CC) | |||
| Luminaire Net Weight | 0.4kg | 0.6kg | 0.7kg | |
| Packing Information | 15PCS/CTN | 15PCS/CTN | 15PCS/CTN | |
| Export Carton Size | 70*24*16(cm) | 130*24*16(cm) | 160*24*16(cm) | |
| Gross Weight | 8Kg | 12.1Kg | 14.3Kg | |
| Material | Housing | Aluminum 6063-T5 | ||
| Optics | PC(Frosted) | |||
| Fixture Color | White | |||
| Mounting Option | Ceiling mounted | |||
| Ambient Temperature | -40~+40℃ | |||
| Life Time | 30.000 hours | |||
| Warranty | 3 Years | |||
